Grandstream GWN7665 Wi-Fi 6E Access Point | GWN7665
The Grandstream GWN7665 Wi-Fi 6E Access Point | GWN7665 is an enterprise-grade tri-band wireless access point designed for business, office, residential, and commercial network deployments with medium-to-high user density. It supports Wi-Fi 6E, 5.4Gbps aggregate wireless throughput, tri-band 2x2:2 MU-MIMO with DL/UL OFDMA, 384 concurrent Wi-Fi clients, and up to 175m coverage range.
Key Features:
•
Wi-Fi 6E Technology:
Supports tri-band wireless connectivity across 2.4GHz, 5GHz, and 6GHz bands.
•
5.4Gbps Wireless Throughput:
Delivers high-speed aggregate wireless performance for demanding networks.
•
384 Concurrent Clients:
Supports up to 384 Wi-Fi client devices for busy environments.
•
Tri-Band 2x2:2 MU-MIMO:
Uses DL/UL OFDMA technology for efficient multi-device performance.
•
Up to 175m Coverage:
Designed to provide wide wireless coverage depending on environment.
•

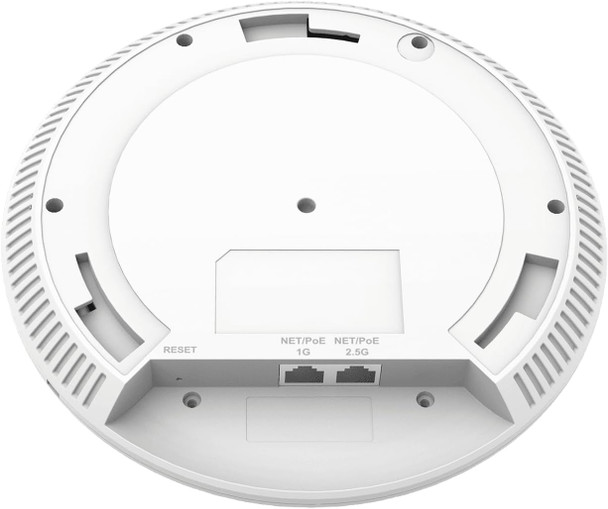

Dual Ethernet Ports:
Includes 1 Gigabit Ethernet port and 1 2.5 Gigabit Ethernet port.
•
PoE / PoE+ Support:
Supports power over Ethernet for cleaner installation.
•
Network Management:
Supports embedded controller, GWN.Cloud, and GWN Manager management options.
Technical Specifications:
Specification
Details
Brand
Grandstream
Product Name
GWN7665 Wi-Fi 6E Access Point
Model / MPN
GWN7665
SKU
GSTM-GWN7665
Product Type
Indoor Wireless Access Point
Wi-Fi Standard
IEEE 802.11 a/b/g/n/ac/ax
Wireless Technology
Wi-Fi 6E
Bands
Tri-Band 2.4GHz / 5GHz / 6GHz
Wireless Throughput
Up to 5.4Gbps aggregate
MU-MIMO
2x2:2 on 2.4GHz, 5GHz, and 6GHz
OFDMA
DL/UL OFDMA
Concurrent Clients
Up to 384
Coverage Range
Up to 175m
Network Interfaces
1x 10/100/1000 Base-T Ethernet, 1x 10/100/2500 Base-T Ethernet
SSIDs
48 total, 16 per radio
Antennas
7 internal antennas
Bluetooth
BLE 5.2
Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, WPA3, secure boot
Power
PoE / PoE+
Maximum Power Consumption
22.55W
Mounting
Indoor wall mount or ceiling mount
Dimensions
205.3 x 205.3 x 45.9mm
Weight
765g
Package Content
GWN7665 Wireless AP, mounting kits, quick start guide
Recommended Use
Business Wi-Fi, offices, commercial locations, multi-floor buildings, high-density networks
