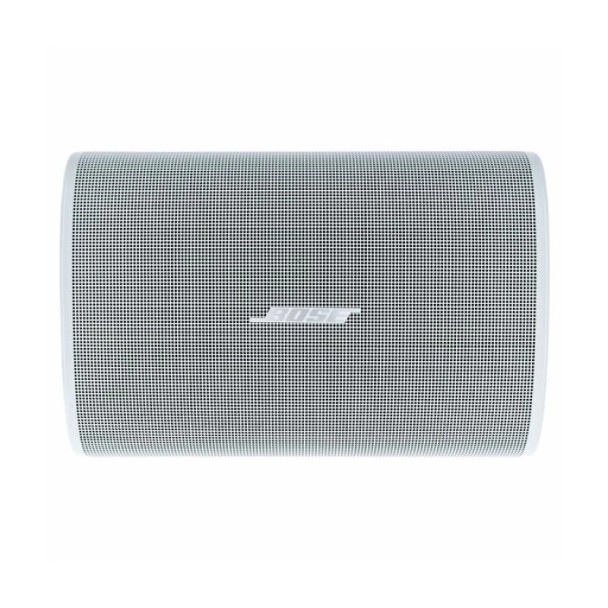

Bose Professional DesignMax DM5SE loudspeakers White (1 pair) | 829705-0220
The Bose Professional DesignMax DM5SE is a pair of premium
surface-mount installation loudspeakers
engineered for commercial audio environments such as restaurants, retail stores, conference rooms, hospitality venues, and houses of worship. The speakers deliver clear and balanced sound while maintaining a compact, modern design that blends easily into interior spaces.
Each speaker uses a
two-way coaxial design with a 5.25-inch woofer and a 1-inch dome tweeter
integrated with Bose’s
Dispersion Alignment system
, providing consistent coverage and natural sound throughout the listening area.
The DM5SE includes a
QuickHold U-bracket mounting system
that allows fast and secure installation while enabling flexible positioning on walls or ceilings. The speaker is also
IP55 rated
, making it suitable for both indoor installations and protected outdoor environments.
Model:
829705-0220
Type:
Surface-mount passive loudspeakers (pair)
Configuration:
2-way coaxial system
Low-Frequency Driver:
5.25″ woofer (133 mm)
High-Frequency Driver:
1″ neodymium dome tweeter
Frequency Range:
65 Hz – 20 kHz (-10 dB)
Frequency Response:
73 Hz – 17 kHz (±3 dB)
Power Handling:
60 W continuous
240 W peak
Sensitivity:
89 dB SPL (1 W / 1 m)
Maximum SPL:
Up to 113 dB peak
Coverage:
135° conical dispersion
Nominal Impedance:
8 Ω (transformer bypass)
Transformer Taps:
70V:
3 / 6 / 12 / 25 / 50 W
100V:
6 / 12 / 25 / 50 W
Environmental Rating:
IP55 weather-resistant
Mounting:
QuickHold U-bracket included
Dimensions (per speaker):
286 × 192 × 197 mm
Weight:
≈4.4 kg per speaker
Color:
White (paintable grille)
