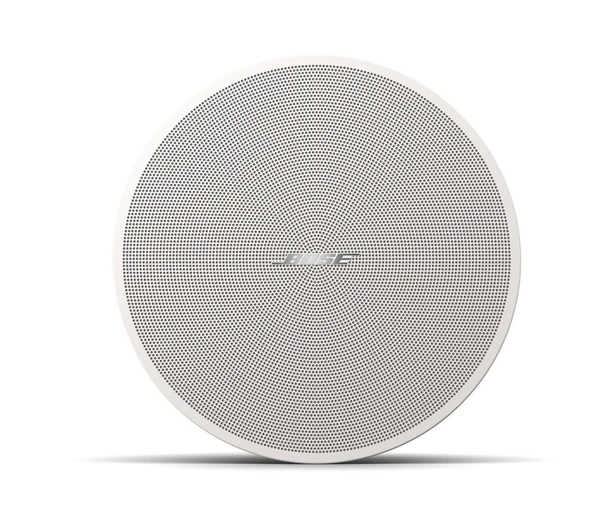

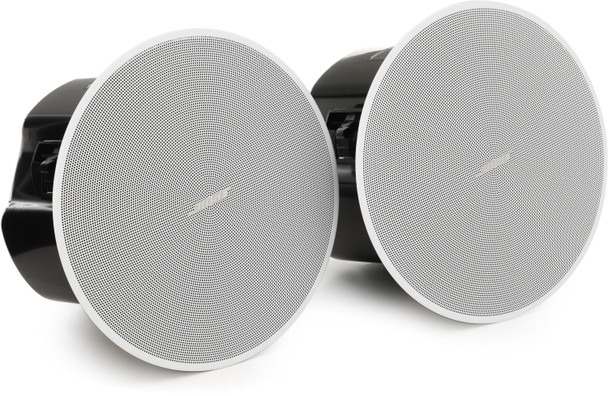

Bose Professional DesignMax DM5C loudspeakers White (1 pair) | 829683-0220
The Bose Professional DesignMax DM5C is a pair of premium
in-ceiling installation loudspeakers
designed for commercial audio environments such as conference rooms, restaurants, retail spaces, hotels, and houses of worship. The speakers combine discreet architectural design with high-quality sound performance for distributed music or voice reinforcement systems.
Each speaker features a
two-way coaxial design with a 5.25-inch woofer and a 1-inch dome tweeter
, delivering clear highs and balanced bass across a wide listening area. Bose’s
Dispersion Alignment system
ensures consistent coverage throughout the room by matching the woofer and tweeter sound patterns.
The DM5C includes
QuickHold spring-loaded mounting arms
, allowing faster and easier installation in ceiling tiles or drywall. A magnetically attached grille with a paintable finish helps the speaker blend seamlessly with interior designs.
Model:
829683-0220
Type:
In-ceiling passive loudspeakers (pair)
Configuration:
2-way coaxial system
Low-Frequency Driver:
5.25″ woofer (133 mm)
High-Frequency Driver:
1″ neodymium dome tweeter
Frequency Range (-10 dB):
65 Hz – 20 kHz
Frequency Response (±3 dB):
73 Hz – 17 kHz
Power Handling:
60 W continuous (RMS)
240 W peak
Sensitivity:
87 dB SPL (1 W / 1 m)
Maximum SPL:
Up to 105 dB continuous / 111 dB peak
Coverage:
130°–135° conical dispersion
Nominal Impedance:
8 Ω (transformer bypass)
Transformer Taps:
70V:
3 / 6 / 12 / 25 / 50 W
100V:
6 / 12 / 25 / 50 W
Mounting System:
QuickHold spring-loaded ceiling arms
Grille:
Magnetic perforated steel grille (paintable)
Installation:
Indoor ceiling installation
Ceiling Cutout Diameter:
250 mm (9.8″)
Dimensions (Grille Diameter × Depth):
303 × 205 mm
Weight:
≈4.5 kg per speaker
Color:
White (paintable)
