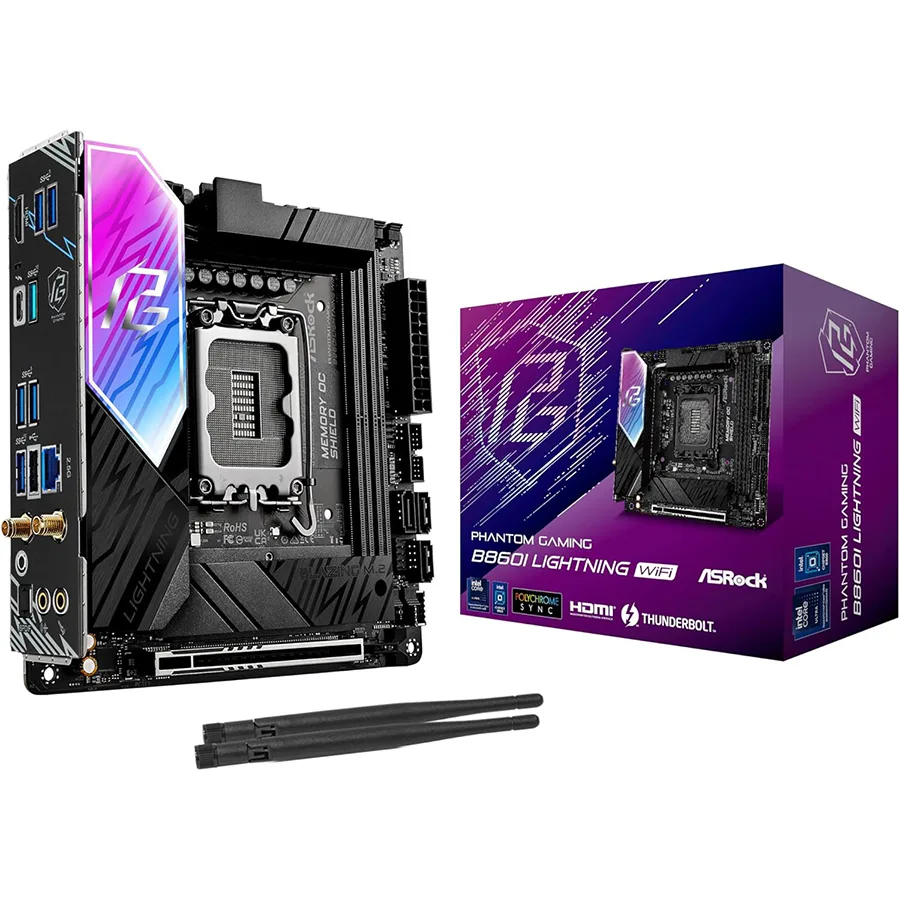

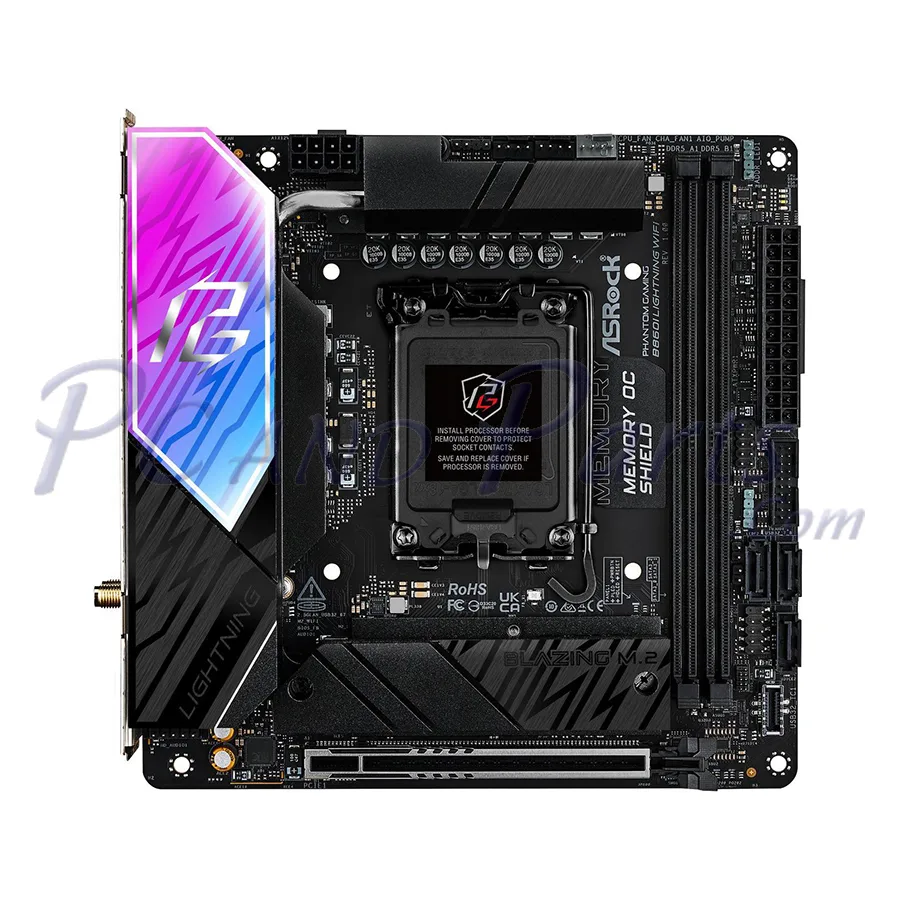

ASRock B860I Lightning WiFi DDR5 LGA1851 Mini ITX

ASRock Phantom Gaming B860I Lightning WiFi 6E DDR5 LGA1851 Mini ITX Motherboard ( Supports 15th Gen CPUs only )
90-MXBRZ0-A0UAYZ

Form Factor
– Mini-ITX Form Factor: 17.0 cm x 17.0 cm
– 10 Layer PCB

Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
– Thunderbolt 4 Type-C Port (40 Gb/s)
Rock-Solid Durability
– 10+1+1+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor
– Memory OC Shield
– Flexible Integrated I/O Shield
– 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Gaming
– 2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker

PRODUCT BRIEF:
Supports Intel Core Ultra Processors (Series 2) (LGA1851)
10+1+1+1+1 Power Phase, 110A SPS for VCore+GT+SA
2 x DDR5 DIMMs
Supports Dual Channel, up to 9333+ (OC)
1 PCIe 5.0 x16

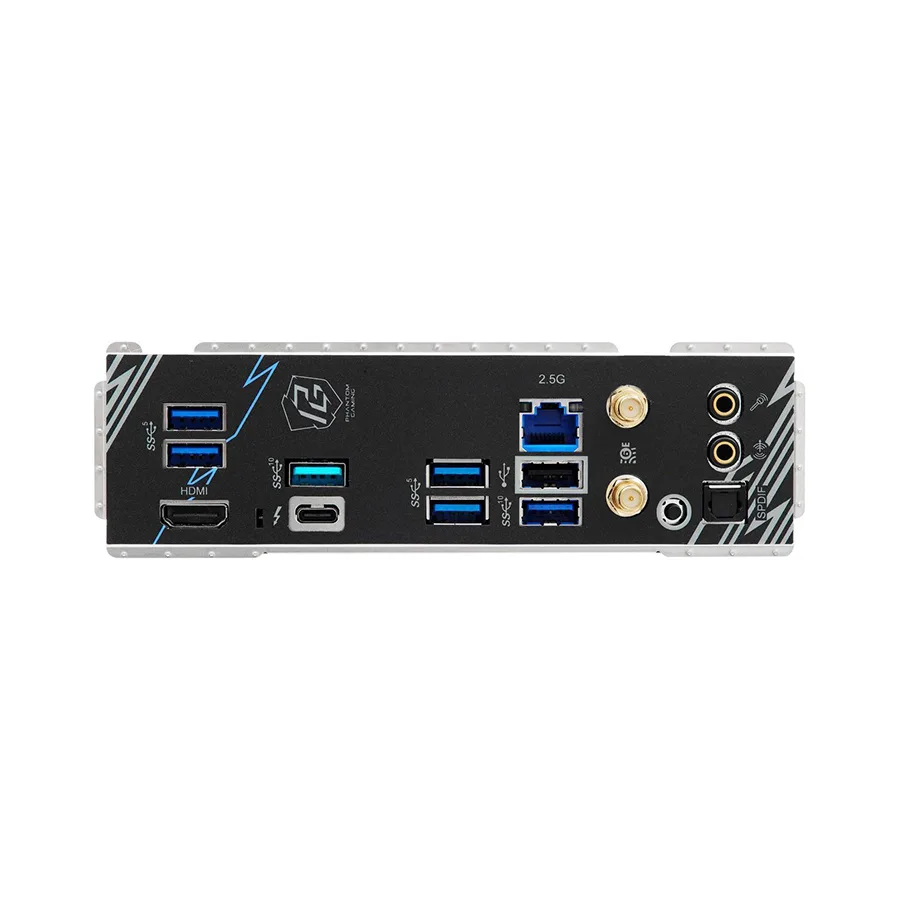

Graphics Output Options: 1 HDMI, 1 Thunderbolt™ 4 Type-C
Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
3 SATA3
1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
1 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
6 USB 3.2 Gen1 (4 Rear, 2 Front)
3 USB 2.0 (1 Rear, 2 Front)
Realtek 2.5G LAN
802.11axe Wi-Fi 6E + Bluetooth
Supports BIOS Flashback, Memory OC Shield
